Trijicon VCOG 1-8×28 – SCO
Video | What’s Included | Specs | Pictures | Restrictions

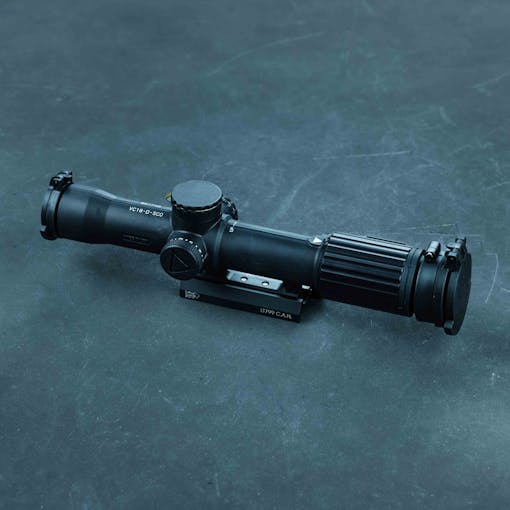

The VCOG 1-8 SCO (Squad Common Optic) was developed by Trijicon at the request of the United States Marine Corps to provide an optic with the reliability of the nearly Marine-Proof ACOG in a variable magnification package. The SCO features the same integral mount found in other VCOG models but has an aftermarket Larue LT799 quick-detach base for easy installation and removal.
Along with the QD mount, the SCO includes Tenebraex flip caps, a padded carrying case, and the enhanced segmented circle reticle, with MRAD (MIL) holds and a finer center aiming point. The VCOG 1-8 and subsequent SCO model is powered by a single AA battery mounted at the 5 o’clock position and features 11 brightness setting with up to 633 hours of continuous use at setting 6
OVERVIEW VIDEO
WHAT’S INCLUDED
- 1x Trijicon VCOG 1-8×28 – SCO
- 1x Larue LT799 Mount
- 2x Tenebraex Flip Caps
- 1x Lithium AA Battery
- 1x Soft Carrying Case
- 1x LensPen
SPECS
FEATURES
- Multi-coated lenses provide superior clarity and light-gathering capabilities with minimal distortion.
- Tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field.
- Integrated mount eliminates the need for ring or cantilever style mounts, increasing consistency and making installation much easier.
- The integral dial fin allows for easy rotation through the magnification settings.
- First Focal Plane design allows for consistent holds throughout the magnification range
- Powered by a single AA battery.
- 11 total brightness settings.
- Red MRAD Segmented Circle Enhanced Reticle
Made in the USA.
View Reticle Information HERE.
View the User Manual HERE.
TECHNICAL SPECIFICATIONS
| Length x Width x Height | 10.93 in x 2.91 in x 2.8 in (277.62mm x 73.91mm x 71.12mm) |
| Weight | 32 oz. (907.18g) |
| Power Source | 1x AA Lithium or Alkaline Battery |
| Adjustment | 0.1 MIL Per Click |
| Eye Relief | 4 in. (101.6mm) |
| Field of View (degrees) | 20° (1x) 2.5° (6x) |
| Mount | Larue Tactical LT799 Mount |
| Objective Size | 28mm |
| Battery Life | 633 hours (26.4 days) at setting 6 |
| Adjustment Range | 35 MRAD |
| Exit Pupil | 0.41 in. – 0.14 in. (10.41mm – 3.56mm) |
| Field of View (feet) | 109.2 ft. – 13.1 ft. @ 100 yds. (36.4 – 4.37m @ 100m) |
| Submersion Depth | 66 ft. (20m) |
PICTURES
RESTRICTIONS
This product is restricted by International Traffic in Arms Regulations (ITAR) and cannot be shipped outside of the USA.
