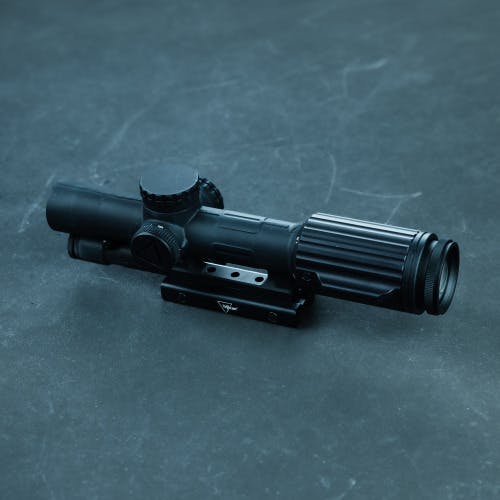

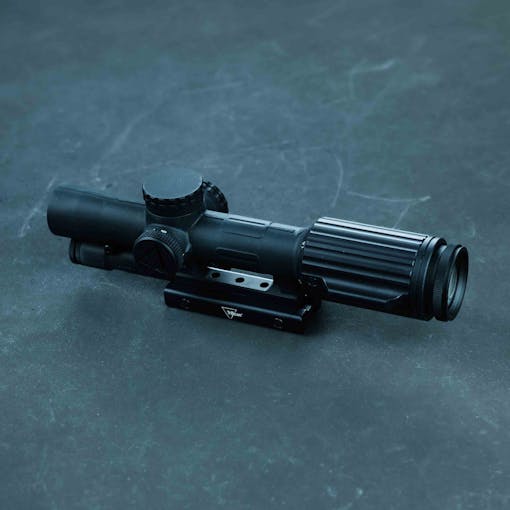

Trijicon VCOG 1-6×24 – MIL
Video | What’s Included | Specs | Pictures | Restrictions
The Trijicon VCOG takes inspiration from the undying durability of the ACOG and applies that to a variable power optic, allowing for more versatility and a wider range of features. One of the defining features of the VCOG is its integral mount. This mount style eliminates the need for separate mounts, scope leveling, and everything else needed to perform that task properly, making the VCOG ready to go right out of the box.
This model features a standard MIL reticle, allowing users to easily make range holds based on their rifle setup and DOPE without worrying about BDCs set up for a specific barrel length, with certain ammunition, at a certain velocity. The VCOG 1-6 is powered by a single AA battery mounted at the 6 o’clock position and has 6 brightness settings, with 700 hours of continuous use at setting 4.
OVERVIEW VIDEO
WHAT’S INCLUDED
- 1x Trijicon VCOG 1-6×24 – MIL
- 1x Thumbscrew Mount
- 1x AA Battery
- 1x LensPen
SPECS
FEATURES
- Multi-coated lenses provide superior clarity and light-gathering capabilities with minimal distortion.
- Tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field.
- Integrated mount eliminates the need for ring or cantilever style mounts, increasing consistency and making installation much easier.
- The integral dial fin allows for easy rotation through the magnification settings.
- First Focal Plane design allows for consistent holds throughout the magnification range
- Powered by a single AA battery.
- 6 total brightness settings.
- Red Segmented Circle/Crosshair MIL (Govt.) Reticle
Made in the USA.
View Reticle Information HERE.
View the User Manual HERE.
TECHNICAL SPECIFICATIONS
| Length x Width x Height | 10.05 in x 2.51 in x 2.73 in (255.27mm x 63.75mm x 69.34mm) |
| Weight | 23.2 oz. (657.71g) |
| Power Source | 1x AA Battery, Alkaline or Lithium |
| Adjustment | 0.1 MIL Per Click |
| Eye Relief | 4 in. (101.6mm) |
| Field of View (degrees) | 18° (1x) 3° (6x) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Objective Size | 24mm |
| Battery Life | 700 hrs continuous use at brightness setting 4 or 6 |
| Adjustment Range | Elevation: 26.2 MIL total travel; Windage: 26.2 MIL total travel; Per Revolution: 8 MIL |
| Exit Pupil | 0.41 in. – 0.15 in. (10.41mm – 3.81mm) |
| Field of View (feet) | 95 ft. – 15.9 ft. @ 100 yds. (31.67 – 5.3m @ 100m) |
| Submersion Depth | 66 ft. (20m) |
PICTURES
RESTRICTIONS
This product is restricted by International Traffic in Arms Regulations (ITAR) and cannot be shipped outside of the USA.
