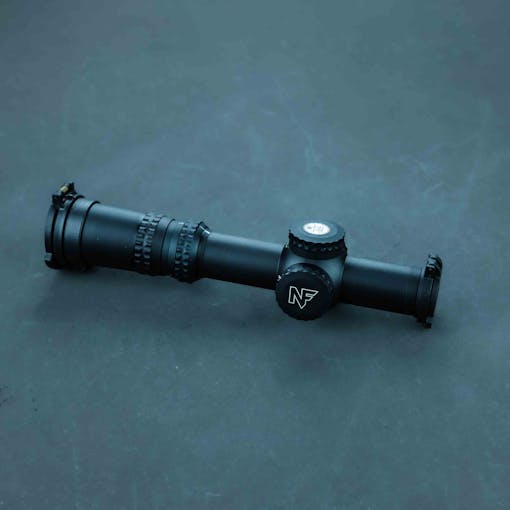

Nightforce ATACR – 1-8x24mm F1
Video | What’s Included | Specs | Pictures | Restrictions
The Nightforce ATACR 1-8 is one of the highest-performing LPVOs on the market without sacrificing the durability and reliability needed to survive whatever you may throw at it. Like other ATACRs, the 1-8 features Nightforce’s Extra-Low Dispersion (ED) Glass, which provides a high level of optical clarity that reduces chromatic aberration, increasing the effective range of the optic while offering excellent performance throughout the magnification range. Aside from the glass, the illumination is also extremely impressive on the 1-8, offering ten brightness levels, including 2 NV modes for Clip-ons and 1 extra-bright mode that is bright enough for the harshest lighting conditions.
The ATACR 1-8 comes with the FC-DMx reticle, a recent update from the old FC-DM reticle found in older NF 1-8s. The DMx reticle slims down on some of the bulk of the older DM reticle and has a more open center and a simplified tree, allowing a better view of targets while still offering quick holds for wind and elevation. Unlike most LPVO reticles, the FC-DMx is a mil-based reticle instead of a BDC, allowing for greater adaptability between numerous platforms, calibers, and barrel lengths while offering the opportunity to use speed drop and mil-based ranging techniques.
OVERVIEW VIDEO
WHAT’S INCLUDED
- One Nightforce ATACR 1-8×24
- One Cleaning Fob/ Cleaning Cloth
- One Multi-Tool
- One Power Throw Lever
- Tenebræx Flip-Up Covers
- Windage and Elevation Beauty Rings
- Stickers
- Owners Manual
We include an 8.5″ x 11″ rifle zero target with every optic.
SPECS
FEATURES
- First Focal Plane.
- Includes Tenebræx Tactical Tough flip covers.
- The optional beauty rings protect the threads on the windage and elevation turrets when not using the turret cap.
- Illumination: Daylight visible, Externally adjustable, Two night vision settings.
- Comes with a power throw lever for quick and positive magnification changes and also serves as a magnification reference point.
- 34mm main tube diameter.
- ATACR’s feature Nightforce’s ED (Extra-Low Dispersion) glass for ultimate optical clarity and performance.
Developed, Assembled, and Verified in the USA.
TECHNICAL SPECIFICATIONS
| Magnification Range | 1-8x |
| Focal Plane | First Focal Plane (F1/FFP) |
| Body Tube Diameter | 34mm |
| Overall Length | 10.1in/256 mm |
| Mounting Length | 5.7 in/144 mm |
| Weight | 21.0 oz/595 g |
| Click Value | .1 MRAD |
| Internal Adjustment Range | E: 30 MRAD W: 30 MRAD |
| Parallax Adjustment | Fixed @ 125 m |
| Eye Relief | 3.7 in/95 mm |
| Field of View @ 100 yd or m | 1x: 96.1 ft/32.0 m 8x: 13.1 ft/4.4 m |
| Exit Pupil | 1x: 11.3 mm 8x: 3.2 mm |
| Illumination | Daylight visible, Externally adjustable, Two night vision settings |
| Elevation Feature | Capped, finger-adjustable |
| Power Throw Lever | Standard |
PICTURES
RESTRICTIONS
Nightforce products cannot be shipped outside of the U.S.
