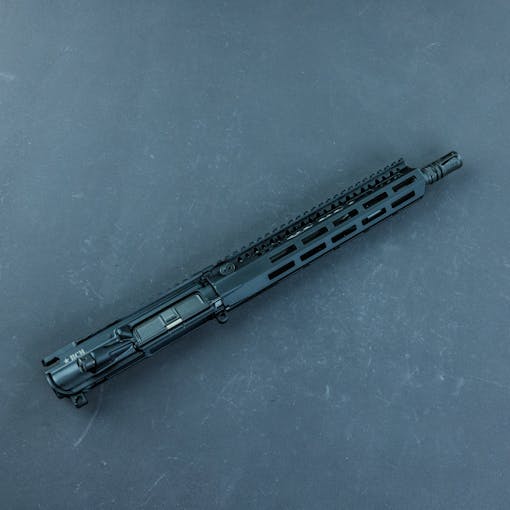

BCM MK2 5.56mm Upper Receiver Group
Video | What’s Included | Specs | Pictures | Restrictions
You get what you pay for, especially when it comes to rifles. While there is a point of diminishing returns, BCM does an excellent job of balancing price, performance, quality, and reliability. The enhanced MK2 upper receiver features a relocated forward assist and unmatched rigidity. Pair this with the BFH barrel and the legitimately Mil-Spec bolt carrier group, and you have a solid performer that can keep up with whatever you throw at it. This receiver group features BCM’s MCMR handguards that are well-proven for being strong, lightweight, and rigid, making these uppers ready for IR lasers right out of the box without worrying about rail shift. Lastly, an often skipped-over feature is BCM’s thermal fit tolerances on both the handguard and barrel extension. This not only provides superior fit and finish but also increases service life and overall consistency.
OVERVIEW VIDEO
WHAT’S INCLUDED

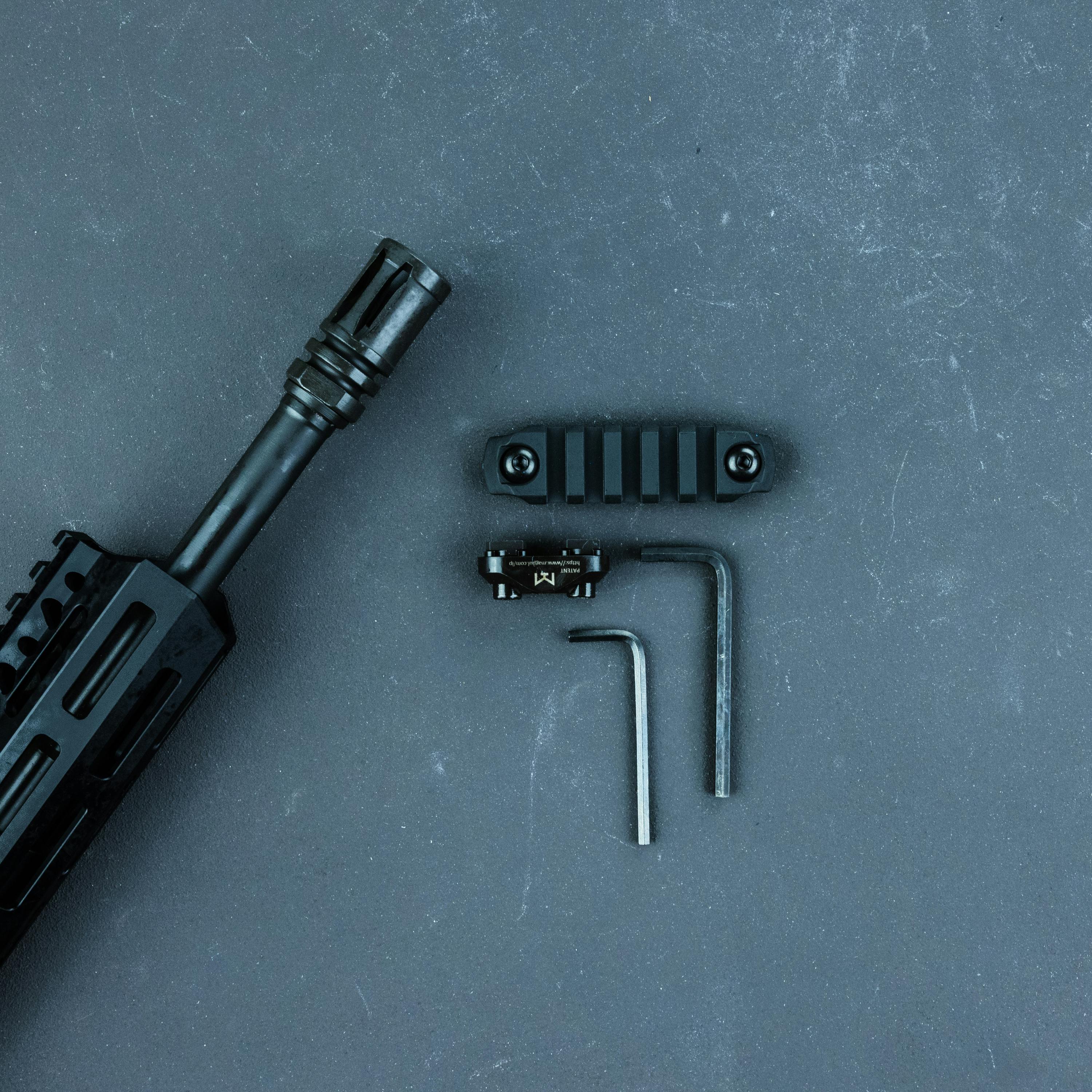

- 1x BCM Upper Receiver with BCG
- 1x M-LOK Picatinny section
- 1x BCM M-LOK QD mount
SPECS
UPPER FEATURES
- Manufactured by Bravo Company MFG, Inc. (BCM)
- Fully assembled, headspaced, and test-fired
- Features BCM’s proprietary MK2 upper receiver for enhanced rigidity
- Relocated forward assist for easier charging handle access
- BCM cold hammer forged barrel (BFH)
- M4 feed ramp barrel extension and upper receiver for reliable feeding
- T-marked upper receiver for easy configuration of tactical accessories
- USGI 1/7 twist rate for versatility with various ammunition
- Mil-Spec barrel steel (Certified Mil-B-11595E) for strength and durability
- Chrome bore and chamber for enhanced chambering, extraction, and reliability
- Manganese phosphate barrel finish for corrosion resistance
- 5.56 NATO Chambers for compatibility with military and high-quality ammunition
- HPT / MP Inspected barrels for quality assurance and flaw detection
BOLT CARRIER FEATURES
- BCM (MPI) complete bolt carrier group for AR-15, M16, or M4
- Parkerized exterior with chrome-lined inside carrier
- Machined to USGI specifications, Full Auto Profile
- M16/M4 carrier with Mil-Spec chrome-lined gas key
- Gas key heat-treated and chrome-lined, securely fastened with grade 8 fasteners
- Bolt assembly machined from Mil-Spec Carpenter No. 158 steel, shot peened
- Includes tool steel extractor and ejector, BCM Extractor Spring
- HPT (High-Pressure Tested) and MPI (Magnetic Particle Inspected)
- BCM test fires for function before shipping
Made in the USA.
BUFFER RECOMMENDATIONS
INDEX:
Sprinco Hot White: In the middle of a standard carbine spring and the Blue spring, roughly 7-8% stiffer than standard.
Sprinco Blue: 15% stiffer than standard carbine springs.
Sprinco Green: Rifle length spring for A5/MK2 buffer systems.
| MK2 16″, MCMR-13, BFH Barrel – ELW Profile, MidLength Gas | MK2 11.5″, MCMR-10, BFH Barrel – Government Profile, Carbine Gas | |
| Unsuppressed | Carbine: H1 – Standard Spring Vltor A5/BCM MK2: -A5H1/T1 – Rifle or Sprinco Green Spring | Carbine: H2 – Standard Spring Vltor A5/BCM MK2: – A5H2/T2 – Rifle or Sprinco Green Spring |
| Suppressed (Low BackPressure) | Carbine: H1 – Sprinco Hot White or Blue Spring Vltor A5/BCM MK2: – A5H2/T2 – Rifle or Sprinco Green Spring | Carbine: H2 – Sprinco Hot White or Blue Spring Vltor A5/BCM MK2: – A5H2/T2 – Rifle or Sprinco Green Spring |
| Suppressed (High BackPressure) | Carbine: H2 – Standard or Sprinco Hot White Spring Vltor A5/BCM MK2: A5H2/T2 – Rifle or Sprinco Green Spring | Carbine: H3 – Sprinco Hot White or Blue Spring Vltor A5/BCM MK2: – A5H3/T3 – Rifle or Sprinco Green Spring |
TECHNICAL SPECIFICATIONS
| Specifications | MK2 16″, MCMR-13, BFH Barrel – ELW Profile, MidLength Gas | MK2 11.5″, MCMR-10, BFH Barrel – Government Profile, Carbine Gas |
| Weight | 3 lb 11.7 oz with Radian Raptor | 3 lb 7.8 oz with Radian Raptor |
| Weight, Standard Lower – No Stock | 5 lb 7.2 oz with Radian Raptor | 5 lb 3.3 oz with Radian Raptor |
| Weight, Standard Lower – Law Folder, No Stock | 6 lb 2.3 oz with Radian Raptor | 5 lb 14.4 oz with Radian Raptor |
| Length, Upper Only | 24.62″ Muzzle Device to End Of Receiver | 19.93″ Muzzle Device to End Of Receiver |
| Length, Standard Lower – No Stock | 31.87″ Muzzle Device to End Of Carbine Extension | 27.18″ Muzzle Device to End Of Carbine Extension |
| Length, Standard Lower – Law Folder, No Stock | 33.25″ Muzzle Device to End Of Carbine Extension | 28.56″ Muzzle Device to End Of Carbine Extension |
| Length, Standard Lower – Law Folder, No Stock (Folded) | 26.56″ Muzzle Device to Furthest point | 21.87″ Muzzle Device to Furthest point |

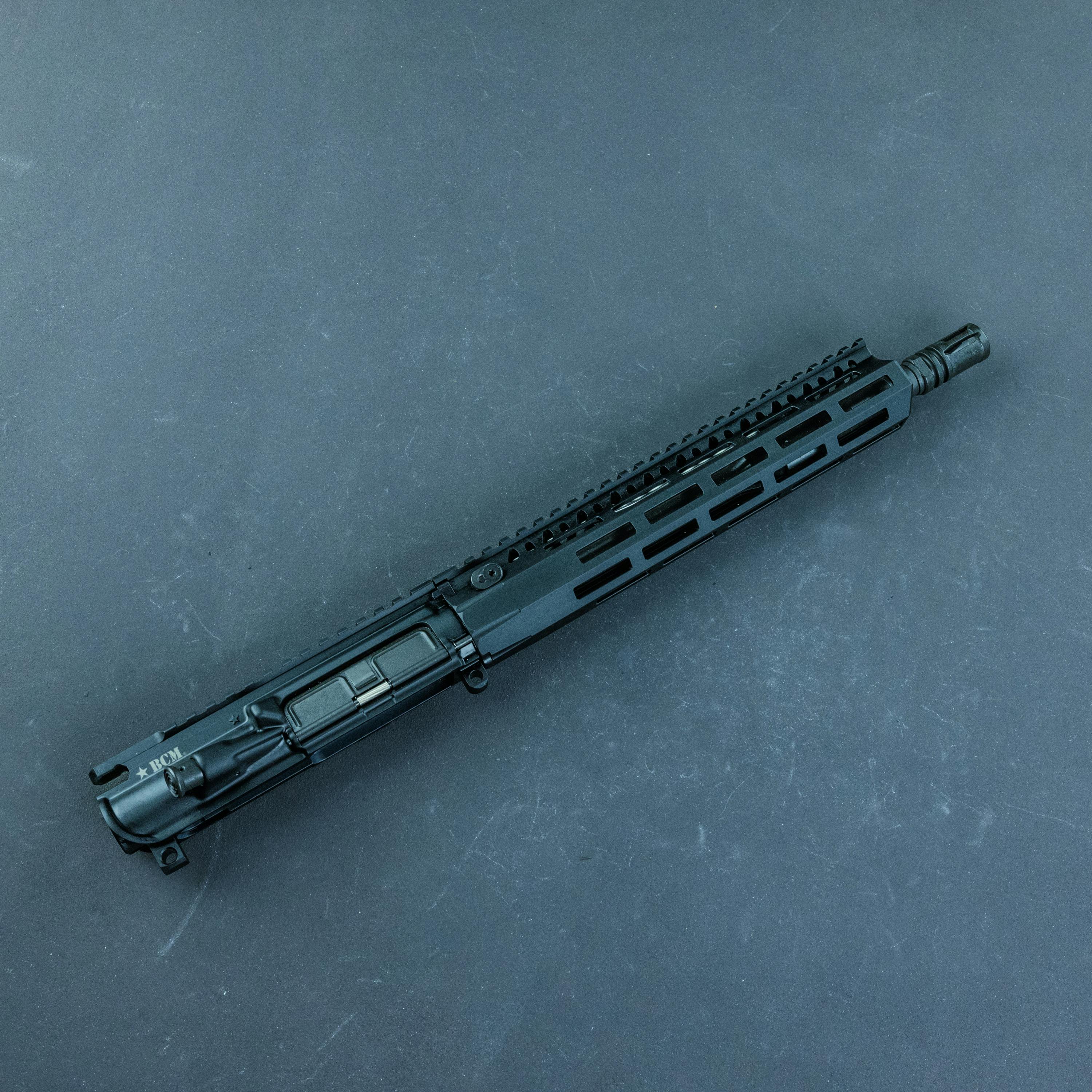

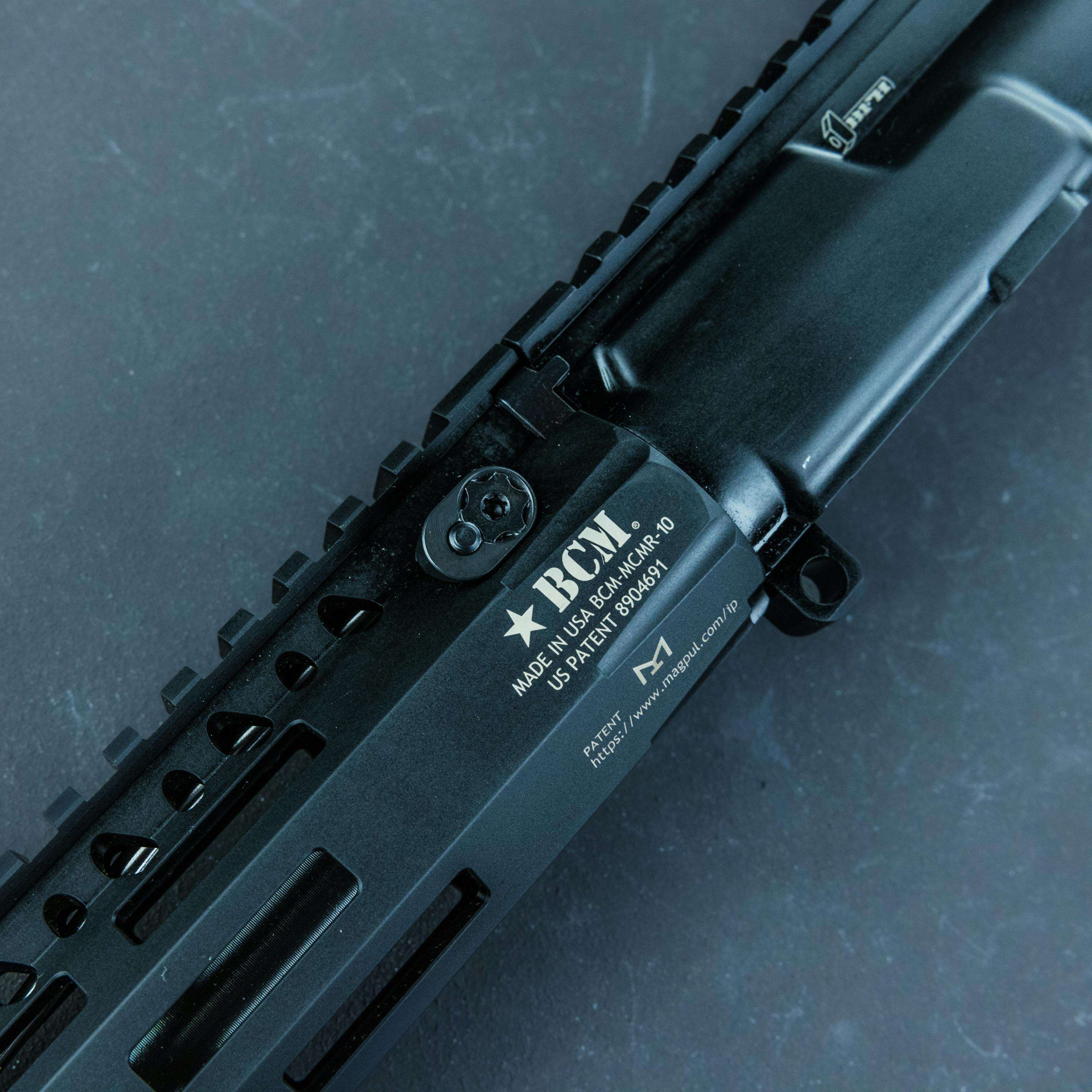

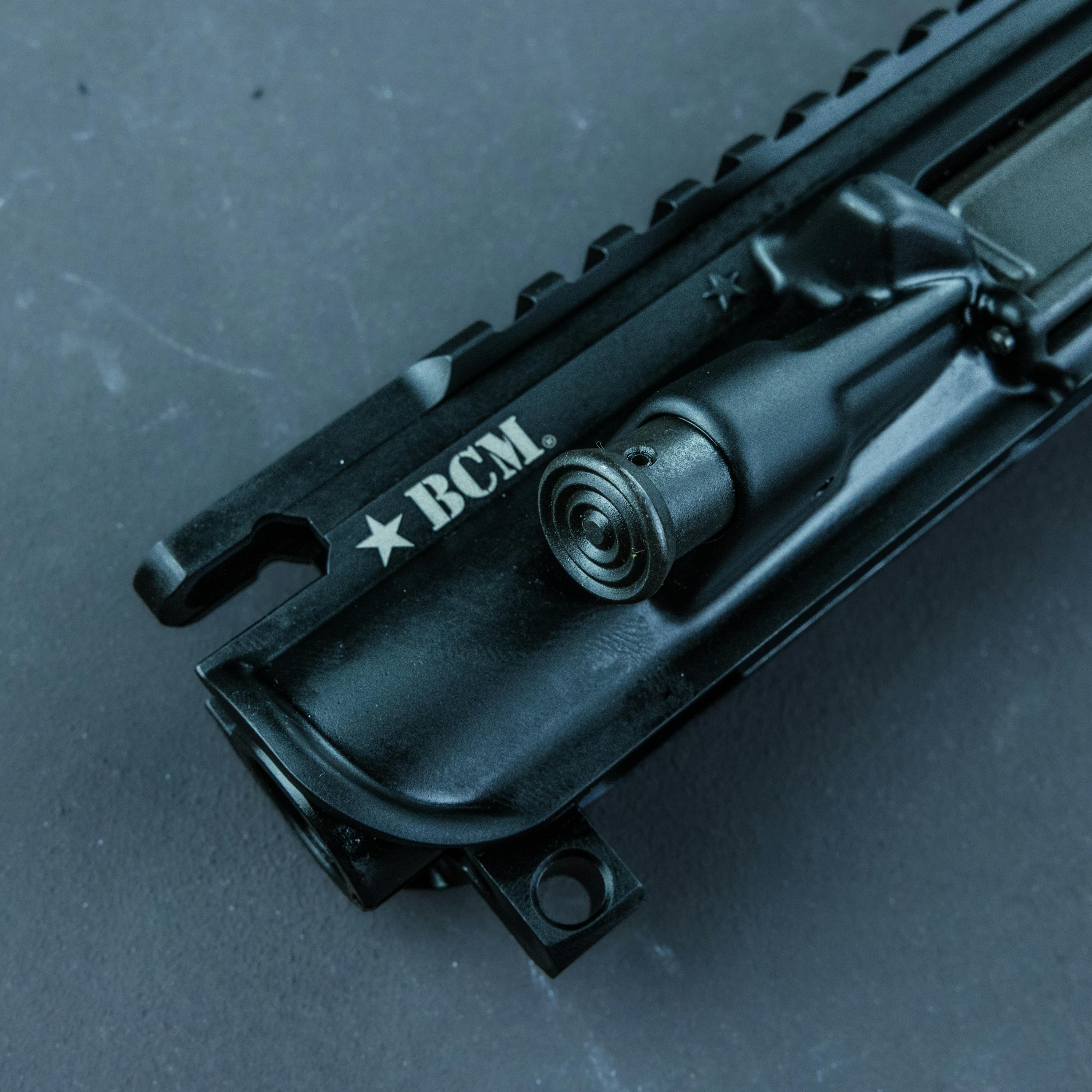

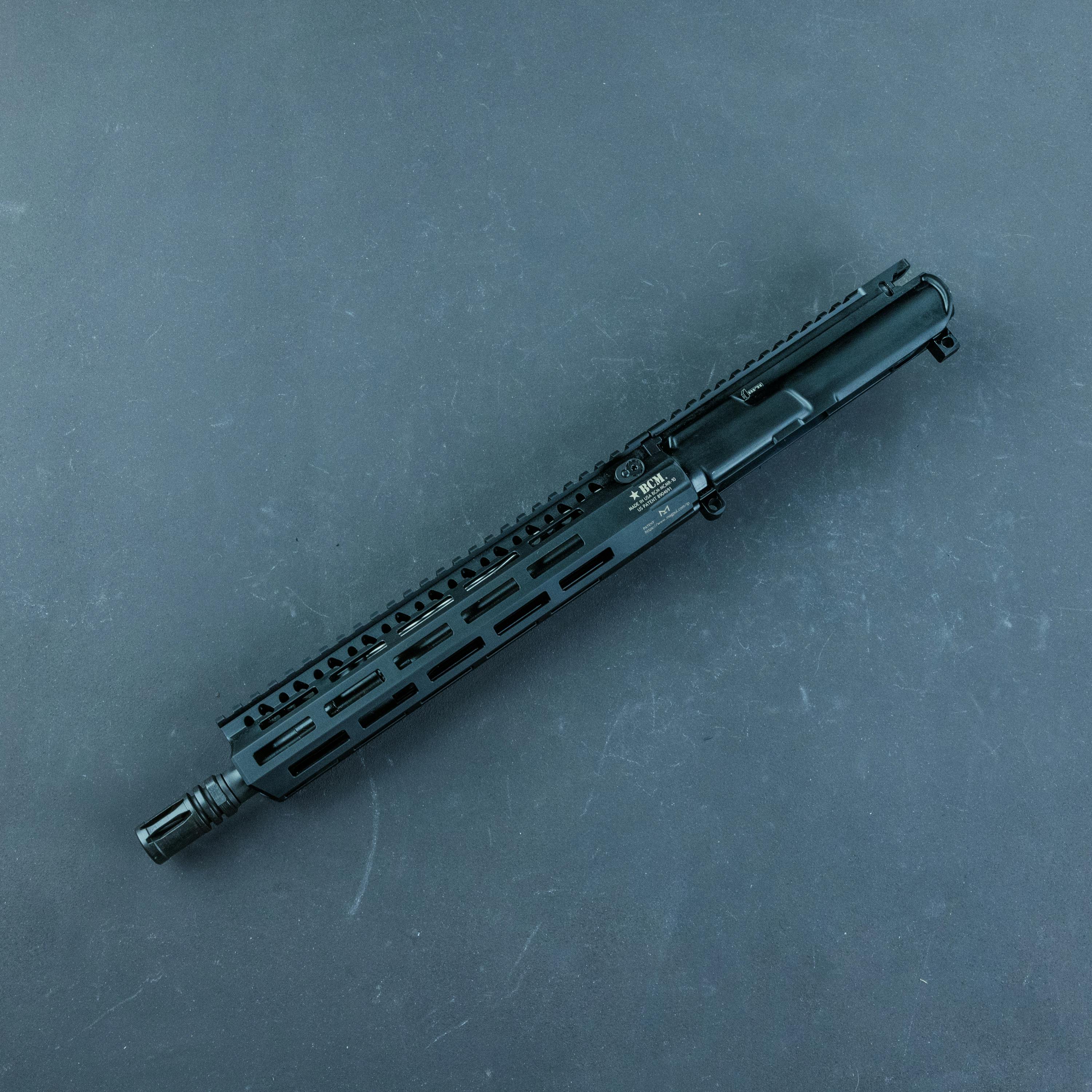

PICTURES
RESTRICTIONS
For uppers with a barrel length of less than 16 inches, it is the buyer’s responsibility to be aware of all applicable laws and regulations regarding their purchase and ownership.
This product cannot ship to Washington State due to unconstitutional restrictions. Because we believe that all citizens should have the same rights, we will not make any exceptions for military, law enforcement, or government personnel.
BCM products cannot be shipped outside of the US.
